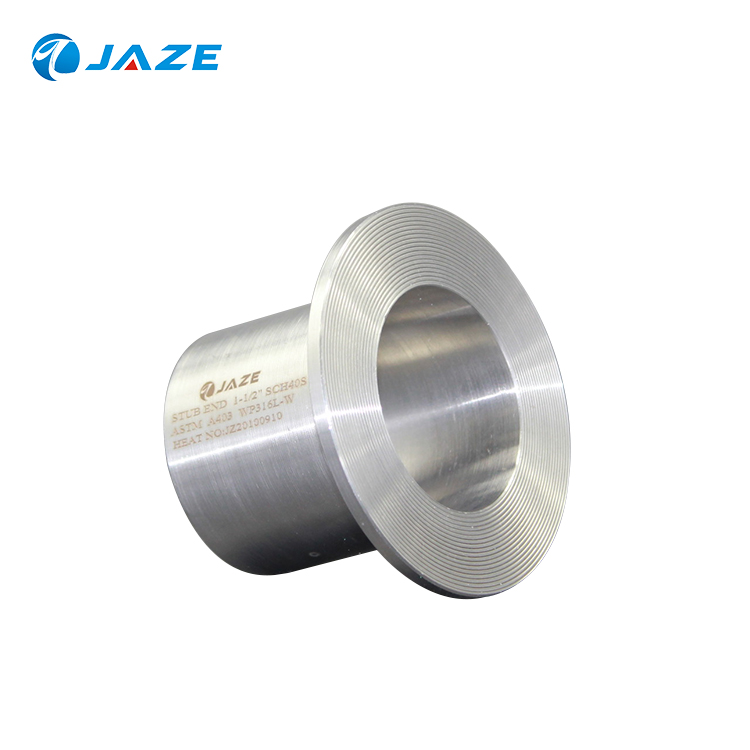

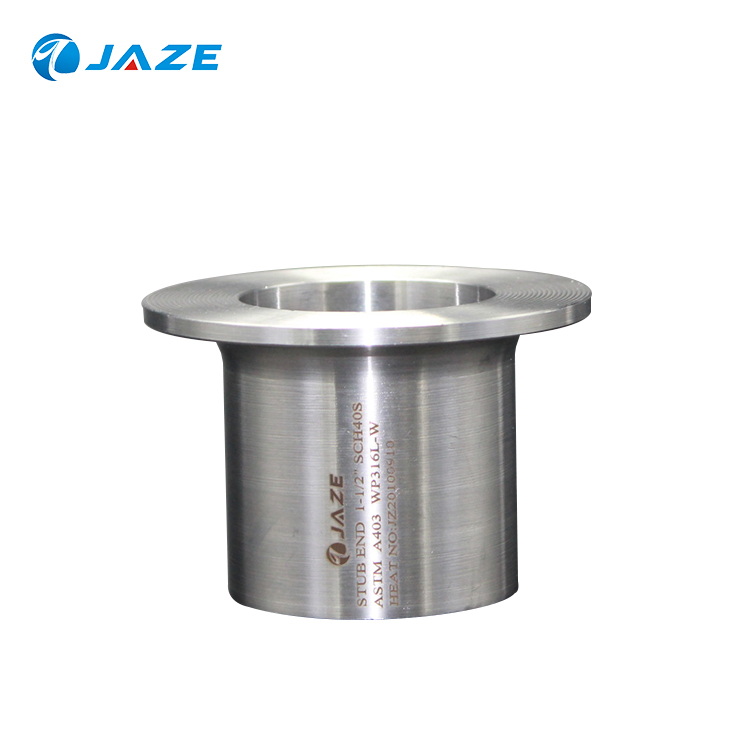

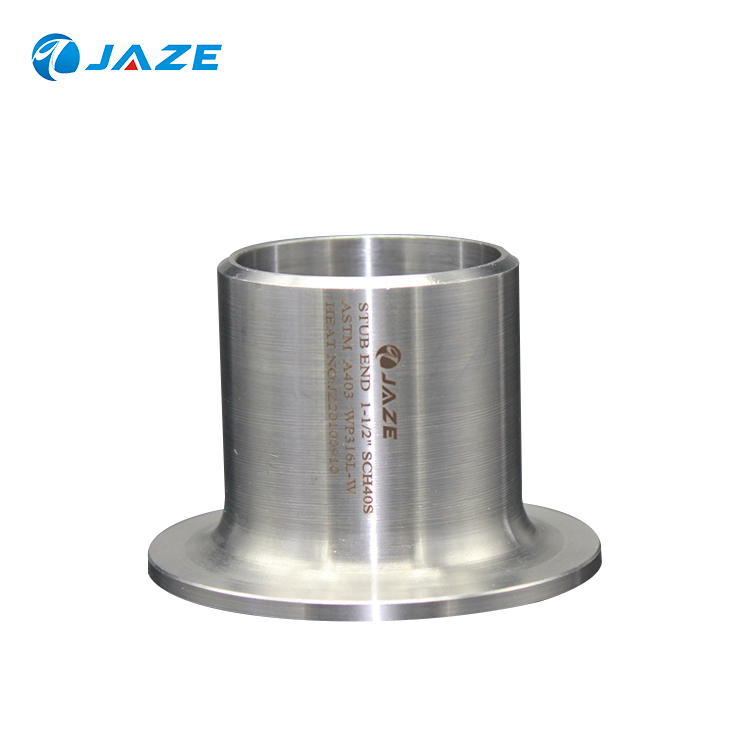

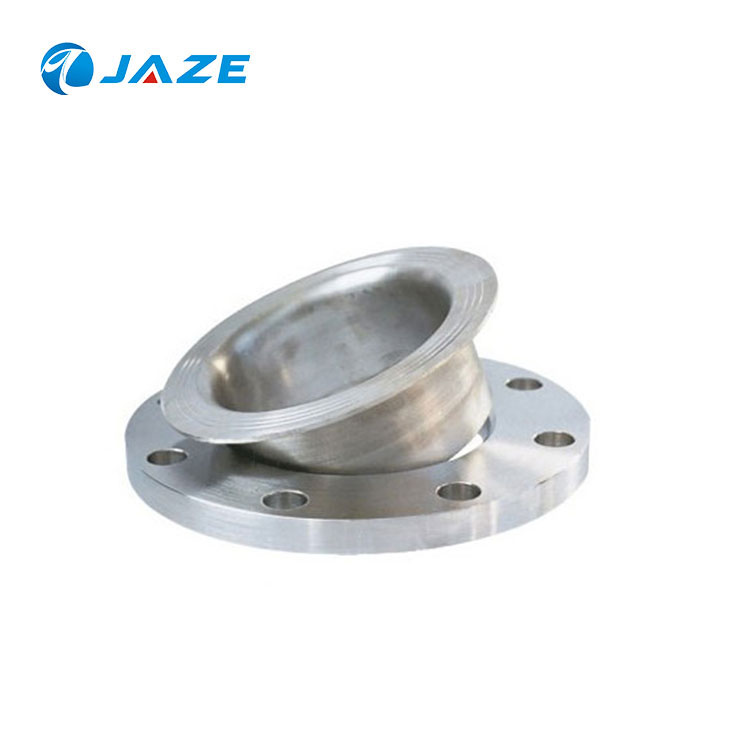

Jiangzhou Lap Joint Flange 02

Material

 Stainless steel  : 304/F304/316/316L ect.

carbon steel      : SS400/Q235   ect.

Standard

GB9112-88(GB9113·1-88~GB9123·36-88)

GOST 12820

ANSI B16.5 /16.47Class150,300,600,900,1500

JIS 5K,10K,16K,20K

DIN2527,2543,2545,2566,2572,2573,2576,2631,2632,2633,2634,2638

UNI2276,2277,2278,6083,6084,6088,6089,2299,2280,2281,2282,2283

BS4504,4506

HG5010-52~HG5028-58,HGJ44-91~HGJ65-91 HG20592-97(HG20593-97~HG20614-97) HG20615-97(HG20616-97~HG20635-97)

JB81-59~JB86-59,JB/T79-94~JB/T86-94

Type

thread / plate / weld neck /socket welding / slip on / long weld neck /

lap joint / blind

Size

 1/2‘’ ~48‘’                               DN10~1200

Weight

 0.49KGS-600KGS

Pressure

 ANSI  150 ~2500LBS

 DIN/EN/UNI:PN6~40

 JIS:10K 16K 20K 30K

Section

RF   /  FF / M /  FM /

Conection

Welding or threaded

Size and drawing

Please fee l free to contact us to get more detailed informations.

Technical

High temperature forged

 Application

Widely used for contecting pipes in valve industry, water system ,paper Industry ,food industry ,boat industry ,chemical industry and ect

 Sample

It is free in general if it is not non-standard,but freight should be prepay

or colleted

 Trade term

 EXW,FOB(no nominated forwarder from customer),CIF or sending goods to export

warehouse or stuffing location

Payment

L/C  or T/T 30% deposit and balance should be paid to us before shiping.

Packaging

PP bag or soft white paper for individual packing,then put into wooden case  or carton,Pallet

is available if customer request

Lead Time

It is about 3 to 15 days based on order quantities or stocking

OEM&ODM

Within experienced R&D team,we desinged and manufactured thousands of new

products for our customers from all the world.We also produces flange without machining for customers who has CNC machine in his own workshop  .We are very interested in developing new items for our customers,if you have new items,please feel free to ask price from us.

Hopefully to be your honest dealer and trustworthy supplier for long time.
